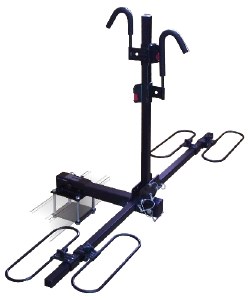

Swagman 64663 Traveler XC2 - 2 Bike Rack - Fits 2" hitches - RV Approved

The Swagman 64663 Traveler XC 2 bike bumper mount allows you to carry two bikes on the back of any travel trailer or 5th wheel trailer with a 4 inch to 4.5 inch square steel bumper. Before attaching this onto the back of your travel trailer or 5th you want you make sure that the bumper is continuously welded in order to safely carry your bikes.

The 64663 XC carries bikes by holding them at the wheels and clamping down on top of the top tube using a ratcheting hook. This provides a very secure hold where bikes don't sway back and forth the way they tend to on hanging style bike racks. The wheel hoops can be adjusted side to side to ensure each bike can fit while clearing pedals, handlebars, spare wheels, ladders, etc.

Features

• Carries up to 2 bikes

• Fits 2 inch receivers or 4 inch x 4 inch to 4.5 inch x 4.5 inch continuously welded steel trailer bumper using an included Swagman 64025 RV Bumper Adapter

• Maximum load capacity 35 lbs per bike

• Platform style allows for easier loading and unloading of bikes

• Ratcheting arms quickly secures bike to the rack

• Threaded hitch pin virtually eliminates movement inside the receiver

• Add a Swagman 64030 5/8" Locking Hitch Pin and Cable Lock (sold separately) to lock the bikes and bike rack to the hitch receiver, or...

• Add a Swagman 64027 5/8" Locking Hitch Pin (sold separately) to lock the bike rack to the hitch receiver

Specifications

• Weight Capacity(Total): 70 lbs.

• Weight Capacity(Per bike): 35 lbs.

• Distance between bikes: 8.66"

• Max tire width: 2.5"

• Max wheel base: 52"

• Fits 20" to 29" wheels

• Fits 2" hitch receivers only

• Important Measurements:

  • Hitch pin to closest point folded up: 8"

  • Hitch pin to closest point in use: 8"

  • Hitch pin to furthest point in use: 24.12"
• Product Weight: 36 lbs.

• Packaged Weight: 41.6 lbs.

• Product instructions: PDF download

• Dimensions: PDF download
