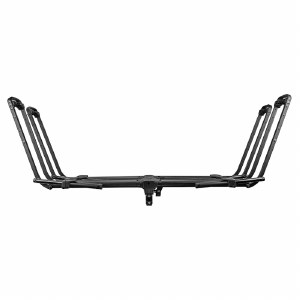

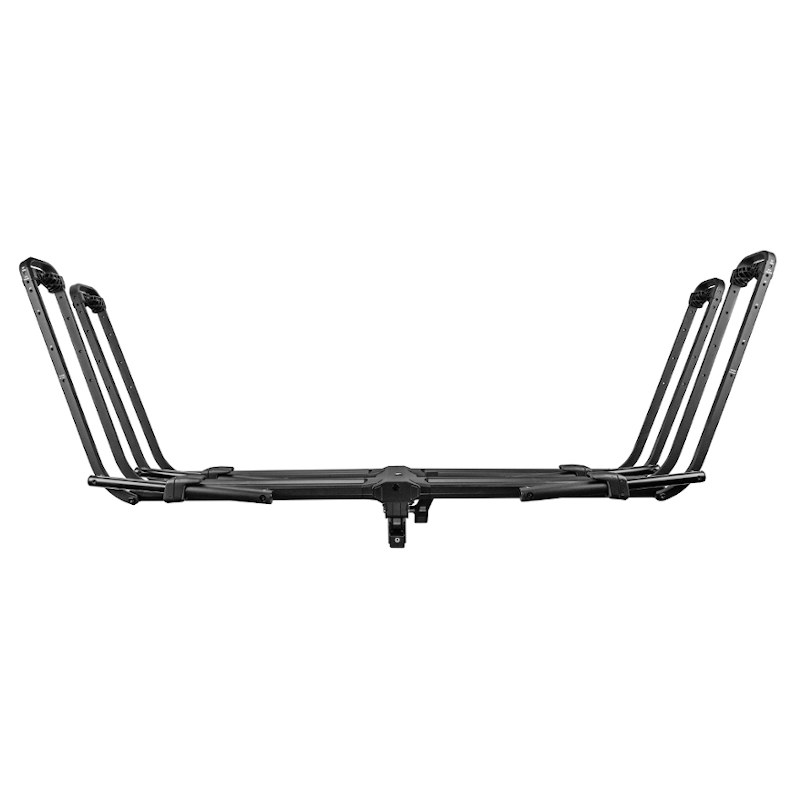

Kuat Piston Pro - 2 Bike - Fits 2 Inch Hitches - Sandy Black

The Kuat Piston® Pro features some of the same great features as The Piston® Pro X minus a few bells and whistles. The Piston Pro features all metal construction, OneTap™ hydro-pneumatic tire arms that make no contact on the bike frame, tool-free wheel chock slides and more.

The Piston® Pro 2 bike hitch rack for 2" hitches can carry bikes weighing up to 67lb each and will fit bikes with up to 5" wide tires and up to a 53" wheelbase. The Piston® Pro can handle nearly any bike you can throw at it with its patented FastFit™ tool-free wheel chock system and OneTap™ hydro-pneumatic tire arms that secure onto your bikes wheels, no frame contact required.

Included with the Piston® Pro is a locking hitch pin to keep the rack secured to your hitch as well as a high-strand 12mm cable lock that is semi-integrated into the rack. The patented Flatlock™ hitch cam keeps the rack tight in your hitch to prevent wobble and bounce while travelling.

Turn the Piston® Pro into a 3 bike or 4 bike rack by purchasing one of the Piston® Pro Add-ons. Add-ons are only compatible with the 2" version of the Piston® Pro.

Features

• 2 Bike Capacity with the ability to expand to a 3 bike or 4 bike capacity with available add-ons

• 98% metal construction

• OneTap™ hydro-pneumatic tire arms

• No frame contact

• Patented FastFit™ tool-free wheel chock system

• Patented PedalPivot™

• Patented Flatlock™ hitch cam

• No Worries Limited Warranty

Specifications

• Weight capacity: 67 lbs. per tray

• Weight Capcity (RV): 42 lbs. per tray on chassis mounted RV hitch (see limited warranty for details)

• Maximum Wheelbase: 53" (reduced to 46" if using the Fender Strap Kit for bikes equipped with a rear fender)

• Maximum tire width: 5"

• Bike spacing (Center to center): 10.5"

• Fits 18" to 29" wheels

• Fits 2" hitch receivers

• Important Measurements:

  • Hitch pin to closest point when folded up: 6.375"

  • Hitch pin to the closest point in the carry position: 10.125"

  • Hitch pin to the inside of the first bike tray: 14.125"

  • Hitch pin to furthest point when folded Up: 15.375"

  • Hitch pin to furthest point when in use: 29.375"

• Product instructions: PDF download
