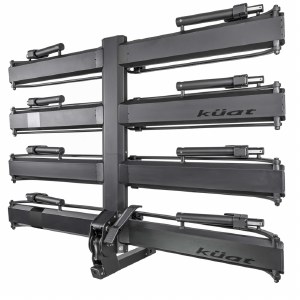

Kuat Piston Pro - 4 Bike - Fits 2 Inch Hitches - Sandy Black

The Kuat Piston Pro features some of the same great features as The Piston Pro X minus a few bells and whistles. Features like all metal construction, OneTap™ hydro-pneumatic tire arms that make no contact on the bike frame, and tool-free wheel chock slides.

The Kuat Piston Pro 4 Bike Package includes the Kuat Piston 2 Bike 2" and Kuat Piston Pro 2 Bike Add-On. The 2 Bike Add-On can be quickly removed and reinstalled using Kuat's QuickConnect mounting system. This allows you to convert your 4 bike Piston Pro into a 2 bike model and then back again with ease.

Need access to your back hatch or don't want the rack to stick out as far when not in use? Problem solved. The Piston Pro features a convenient foot pedal which can also be operated by hand to tilt and fold the rack up and down.

Features

• All metal construction

• OneTap™ hydro-pneumatic tire arms

• Tiered trays for added ground clearance

• Stainless steel & automotive-grade finish on hardware

• FastFit™ tool free wheel chock system

• PedalPivot™ easily folds rack up and down

• Tamper-resistant Flatlock™ hitch cam

• Stainless steel hitch lock

• Semi-integrated high-strand 12mm cable lock

• eBike Ramp available

• Lifetime Warranty

Specifications

• Weight Capacity(Total): 160 lbs.

• Weight Capacity(Per bike): 40 lbs.

• Maximum wheel base: 53"

• Wheel base with Fender Kit: 45"

• Distance between bikes (Centre to centre): 10.5"

• Fits 18" to 29" wheels

• Max Tire Width: 5"

• Fits 2" hitch receivers only

• Important Measurements:

  • Hitch pin to closest point when folded up: 6.375"

  • Hitch pin to the closest point in the carry position: 10.125"

  • Hitch pin to the inside of the first bike tray: 14.125"

  • Hitch pin to furthest point when folded Up: 15.375"

  • Hitch pin to furthest point when in use: 50.75"

• Product Weight: 111 lbs.

• Packaged Weight: 138 lbs.

• 2 Bike Base Instructions: PDF download

• 2 Bike Add-on Instructions: PDF download

• 4 Bike Dimensions: PDF download


Accessories

• E-Bike Ramp

• Fender Kit
