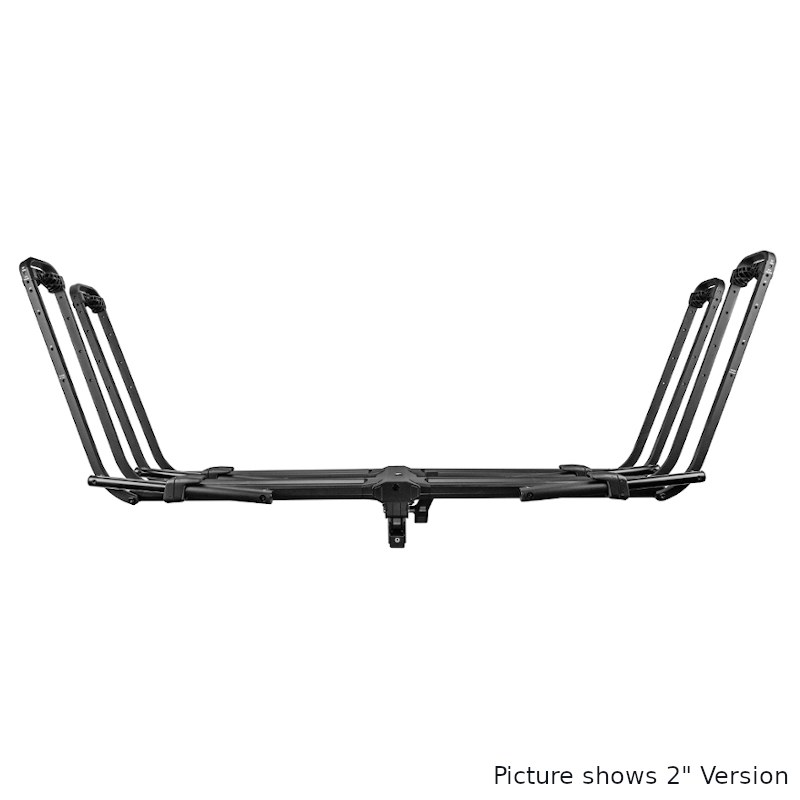

Kuat Piston Pro - 2 Bike - Fits 1.25 Inch Hitches - Sandy Black

The Kuat Piston® Pro features some of the same great features as The Piston® Pro X minus a few bells and whistles. The Piston Pro features all metal construction, OneTap™ hydro-pneumatic tire arms that make no contact on the bike frame, tool-free wheel chock slides and more.

The Piston® Pro 2 bike hitch rack for 1.25" hitches can carry bikes weighing up to 60lb each and will fit bikes with up to 5" wide tires and up to a 53" wheelbase. The Piston® Pro can handle nearly any bike you can throw at it with its patented FastFit™ tool-free wheel chock system and OneTap™ hydro-pneumatic tire arms that secure onto your bikes wheels, no frame contact required.

Included with the Piston® Pro is a locking hitch pin to keep the rack secured to your hitch as well as a high-strand 12mm cable lock that is semi-integrated into the rack. The patented Flatlock™ hitch cam keeps the rack tight in your hitch to prevent wobble and bounce while travelling.

Features

• 2 Bike Capacity

• 98% metal construction

• OneTap™ hydro-pneumatic tire arms

• No frame contact

• Patented FastFit™ tool-free wheel chock system

• Patented PedalPivot™

• Patented Flatlock™ hitch cam

• No Worries Limited Warranty

Specifications

• Weight capacity: 60 lbs. per tray

• Maximum Wheelbase: 53" (reduced to 46" if using the Fender Strap Kit for bikes equipped with a rear fender)

• Maximum tire width: 5"

• Bike spacing (Center to center): 10.5"

• Fits 18" to 29" wheels

• Fits 1.25" hitch receivers

• Important Measurements:

  • Hitch pin to closest point when folded up: 8.25"

  • Hitch pin to the closest point in the carry position: 11.125"

  • Hitch pin to the inside of the first bike tray: 12.125"

  • Hitch pin to furthest point when in use: 30.375"

• Product instructions: PDF download
