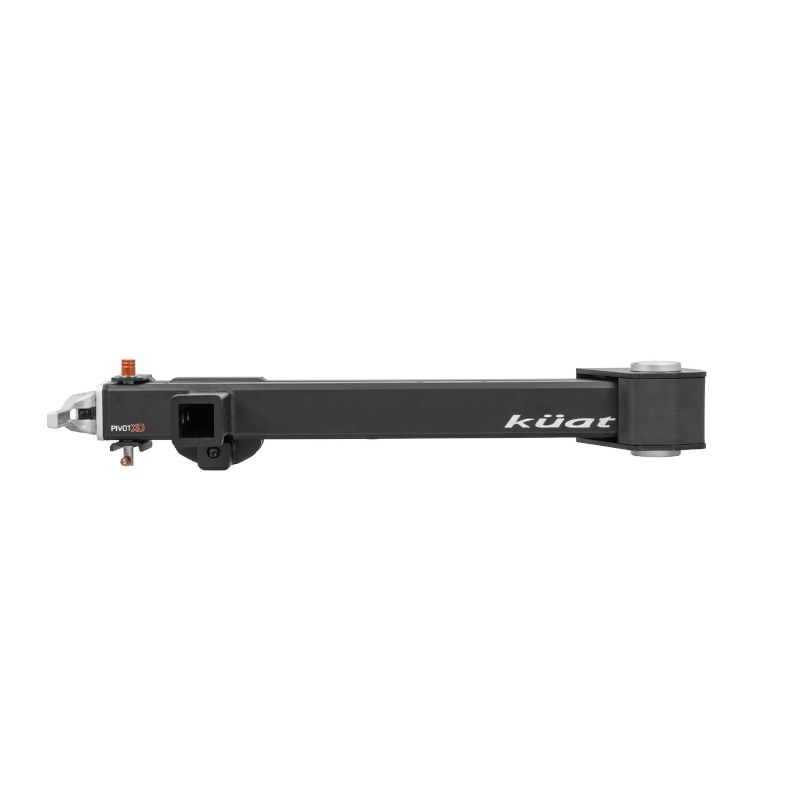

Kuat Pivot XD Swing Away Adapter

Introducing the Pivot XD swing-away hitch - the heavy-duty evolution of our proven Pivot V2 design. Engineered for serious hauling, the Pivot XD delivers a substantial 350 lb load capacity, representing a significant upgrade. The Pivot XD is not just a swing away accessory for bike racks, it's also designed to be accessorized with a molle hoop and spare tire mount.

Every component has been enhanced for superior performance and durability. The forged latch design provides exceptional rigidity under load, while the custom-machined safety pin works double duty, creating best-in-class stability. The included locking hitch pin and Flatlock™ Hitch Cam system work together to keep your cargo carrier securely attached. The conical ball bearing pivot creates a smooth opening and closing experience.

The Pivot XD maintains the versatility that made the V2 popular, offering both 90 and 120-degree passenger side swing-away capabilities for easy rear vehicle access. Whether you're loading gear or need to access your tailgate, the smooth swing mechanism gets your carrier out of the way quickly.

Built with robust steel construction throughout, the Pivot XD is designed to handle whatever you throw at it. From bike racks to cargo carriers, this hitch provides the strength and reliability you need for your adventures. Plus, it's backed by our comprehensive No Worries Limited Warranty for complete peace of mind.

Compatibility

Minimum Class III hitch required. Keep in mind that carrying weight further from the hitch will increase the weight tension on your vehicle’s hitch. The Pivot XD is not rated for use on RVs, trailers, motorhomes or towing.

Capacity

350lb maximum weight capacity, 250lb maximum weight capacity for off-road use. See the Pivot XD User Guide for full safety instructions.

Kuat racks are limited to 3 bikes (maximum 250 lbs), and all other bike racks or cargo systems should follow the distance-to-weight guidelines:

• Up to 28" (from the accessory’s hitch-pin hole to the furthest point): 350 lbs max total weight

• 28–40" (from the accessory’s hitch-pin hole to the furthest point): 250 lbs max total weight

*Loads within the 40" limit may exceed some Class III receiver ratings — check your vehicle or hitch manufacturer for exact tongue-weight details.
**Refer to the Pivot XD's Loading Capacity Guide (below) to learn more.

Features

• 350 lb max weight capacity - Built to handle serious loads, the Pivot XD supports up to 350 pounds – a substantial 40% increase over the V2's 250 lb capacity. This heavy-duty rating means you can confidently carry multiple bikes, larger cargo boxes, or heavier equipment without worry. But distance matters with the Pivot XD. The farther the weight is from the hitch, the more torque is applied, which limits how much weight or how many bikes can be safely carried. Kuat racks are limited to 3 bikes (maximum 250 lbs), and all other bike racks or cargo systems should follow the distance-to-weight guidelines:
  • Up to 28" (from the accessory’s hitch-pin hole to the furthest point): 350 lbs max total weight

  • 28–40" (from the accessory’s hitch-pin hole to the furthest point): 250 lbs max total weight
  *Refer to the Pivot XD's Loading Capacity Guide (below) to learn more.
  **Loads within the 40" limit may exceed some Class III receiver ratings — check your vehicle or hitch manufacturer for exact tongue-weight details.

• Vertical bike rack approved - up to 4 bikes with a reduced 150 lbs. weight capacity (not including the weight of the bike rack)

• 90° to 120° Swing Away - Maximum versatility with dual swing positions. Choose 90 degrees for standard clearance or 120 degrees for maximum rear access. The smooth swing mechanism allows you to quickly move your cargo out of the way for tailgate access or rear door opening.

• Forged Latch - Engineered for strength, the forged latch provides superior rigidity compared to cast or fabricated alternatives. This precision-forged component ensures your swing away hitch maintains a secure closed position even under maximum load conditions and road vibration.

• Patented Flatlock™ Hitch Cam - Advanced cam-locking mechanism provides a tight, rattle-free connection to your vehicle's receiver. The cam system applies consistent pressure to eliminate play and ensure smooth operation mile after mile.

• Locking Hitch Pin - Includes a locking hitch pin that adds a layer of security to the hitch assembly. The durable lock mechanism helps deter a potential threat while still allowing for smooth, easy operation when in use.

• Bike Rack Compatible - Transforms your existing 2" hitch bike rack into a versatile swing away bike rack. Designed for maximum compatibility, the Pivot XD works with most platform and tray-style bike racks, giving you the freedom to access your vehicle's rear door or tailgate without removing your bikes.

Specifications

• Minimum Class III hitch required

• 350 lbs. Maximum weight capacity (250 lbs for off road use)

• Kuat racks are limited to 3 bikes (maximum 250 lbs), and all other bike racks or cargo systems should follow the distance-to-weight guidelines:
  • Up to 28" (from the accessory’s hitch-pin hole to the furthest point): 350 lbs max total weight

  • 28" to 40" (from the accessory’s hitch-pin hole to the furthest point): 250 lbs max total weight


• Pivot XD is approved for vertical hanging racks up to 4 bikes and a maximum weight of 150 lbs. (not including the weight of the bike rack)

• Extends rack 15"

• Fitment Note: Vehicles with rear-mounted spare tires may interfere with the Pivot XD Safety Pin. Review the Product Dimensions Guide for measurements or contact Customer Service for assistance.

• Weight: 68 lbs

• User Guide: PDF download (External Link)

• Product Dimensions: PDF download (External Link)

• Loading Guide: PDF Download (External Link)

Kuat Bike Rack Compatibility

The Kuat Pivot XD is compatible with the following Kuat bike racks:

• Piston ION - 2 Bike - 2"

• Piston Pro X - 2 Bike - 2"

• Piston Pro X - 3 Bike - 2"

• Piston Pro - 2 Bike - 2"

• Piston Pro - 3 Bike - 2"

• Piston SR Hitch Rack - 1 Bike - 2"

• NV 2.0 - 2 Bike - 2" - Grey

• NV 2.0 - 3 Bike - 2" - Grey

• NV 2.0 - 2 Bike - 2" - Black

• NV 2.0 - 3 Bike - 2" - Black

• NV Base - 2 Bike - 2"

• NV Base - 3 Bike - 2"

• Sherpa 2.0 - 2 Bike - 2" - Grey

• Sherpa 2.0 - 2 Bike - 2" - Black

• Transfer v2 - 2 Bike - 2"

• Transfer v2 - 3 Bike - 2"

Available Accessories

• Accessory Hoop with Molle Panel

• Spare Tire Adapter (offered in three wheel fitments)
