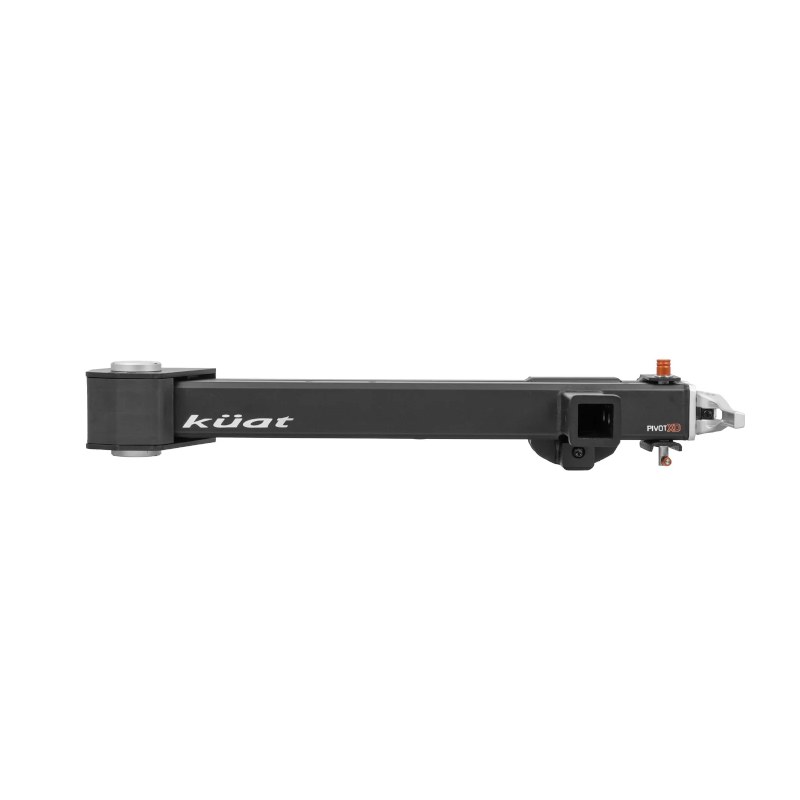

Kuat Pivot XD Driver Side Swing Away Adapter

The Kuat Pivot XD Driver Side is a heavy-duty swing-away hitch designed to provide convenient access to your vehicle’s rear cargo area without removing your bike rack or cargo carrier. With a maximum on-road capacity of 350 lbs. and a rugged construction, the Pivot XD is built to handle demanding loads and outdoor adventures. Its smooth pivoting mechanism offers 90° and 120° swing positions, allowing you to move your gear out of the way to access your tailgate or rear doors.

Engineered for strength, stability, and ease of use, the Pivot XD features a forged latch, a custom-machined safety pin, and Kuat’s patented Flatlock™ Hitch Cam system for a secure connection. The conical ball-bearing pivot ensures smooth operation, while the included locking hitch pin adds security. Compatible with a wide range of Kuat hitch racks and other cargo systems, the Pivot XD can also be paired with optional accessories, including the Accessory Hoop with MOLLE Panel and Spare Tire Adapter.

Compatibility

A minimum Class III 2" hitch is required. Keep in mind that carrying weight farther from the hitch increases the leverage and stress applied to your vehicle’s hitch. The Pivot XD is not rated for use on RVs, trailers, motorhomes, or for towing.

Capacity

The Pivot XD has a maximum weight capacity of 350 lbs. for on-road use and 250 lbs. for off-road use. Capacity limits depend on the distance between the hitch-pin hole and the furthest point of the mounted accessory.

• Up to 28" from the accessory’s hitch-pin hole: 350 lbs. maximum total weight

• 28" to 40" from the accessory’s hitch-pin hole: 250 lbs. maximum total weight

Kuat bike racks are limited to a maximum of 3 bikes and 250 lbs. Vertical hanging bike racks are approved for up to 4 bikes, with a maximum weight of 150 lbs., excluding the weight of the rack. Loads within the 40" limit may exceed some Class III receiver ratings. Always check your vehicle or hitch manufacturer’s tongue-weight limits and refer to the Pivot XD Loading Capacity Guide for complete safety information.

Driver Side Swing-Away Hitch

This version of the Pivot XD is designed to swing toward the driver’s side of the vehicle, providing convenient access to the rear cargo area while keeping your mounted rack or gear attached.

Features

• Heavy-Duty 350 lb. Capacity - Supports up to 350 lbs. on-road and 250 lbs. off-road, offering increased capacity over the Pivot V2. Actual capacity depends on the distance of the load from the hitch and the vehicle’s hitch rating.

• 90° to 120° Swing-Away - Choose between 90° and 120° swing positions to move your rack and cargo away from the rear of your vehicle for easier access to tailgates and rear doors.

• Vertical Bike Rack Approved - Compatible with approved vertical hanging bike racks carrying up to 4 bikes, with a maximum load of 150 lbs., excluding the weight of the rack.

• Forged Latch - A durable forged latch provides a secure connection and helps maintain stability during travel.

• Patented Flatlock™ Hitch Cam - Helps minimize movement and rattle between the Pivot XD and your vehicle’s hitch receiver.

• Locking Hitch Pin - Included locking hitch pin adds security to the hitch assembly.

• Bike Rack Compatible - Designed to work with a range of Kuat platform and tray-style hitch bike racks, allowing rear vehicle access without removing your mounted rack.

• Accessory Compatible - Supports optional accessories such as the Pivot XD Accessory Hoop with MOLLE Panel and Spare Tire Adapter.

Specifications

• Minimum Hitch Class: Class III, 2" receiver

• Maximum Weight Capacity: 350 lbs. on-road; 250 lbs. off-road

• Kuat Bike Rack Capacity: Up to 3 bikes and 250 lbs. maximum

• Vertical Hanging Rack Capacity: Up to 4 bikes and 150 lbs., excluding rack weight

• Maximum Accessory Length: 40" from the accessory’s hitch-pin hole to its furthest point

• Extension: 15"

• Swing Direction: Driver Side

• Weight: 68 lbs.
• Fitment Note: Vehicles with rear-mounted spare tires may interfere with the Pivot XD safety pin. Review the Product Dimensions Guide or contact Customer Service for assistance.

• User Guide: PDF download (External Link)

• Product Dimensions: PDF download (External Link)

• Loading Guide: PDF download (External Link)

Kuat Bike Rack Compatibility

• Piston ION - 2 Bike - 2"
• Piston Pro X - 2 Bike - 2"

• Piston Pro X - 3 Bike - 2"

• Piston Pro - 2 Bike - 2"

• Piston Pro - 3 Bike - 2"

• Piston SR Hitch Rack - 1 Bike - 2"

• NV 2.0 - 2 Bike - 2" - Grey

• NV 2.0 - 3 Bike - 2" - Grey

• NV 2.0 - 2 Bike - 2" - Black

• NV 2.0 - 3 Bike - 2" - Black

• NV Base - 2 Bike - 2"

• NV Base - 3 Bike - 2"

• Sherpa 2.0 - 2 Bike - 2" - Grey

• Sherpa 2.0 - 2 Bike - 2" - Black

• Transfer v2 - 2 Bike - 2"

• Transfer v2 - 3 Bike - 2"

Available Accessories

• Pivot XD Accessory Hoop with MOLLE Panel

• Spare Tire Adapter (available in three wheel fitments)
